AC1200 GPON HGU
• SOC with Dualcore CPU
• 1*GPON Port, SC/APC
• 4*GbE RJ45 Ports
• 2*FXS RJ11 Ports
• 2*USB Ports (optional)
• 2.4G 11N 2x2 MIMO
• 5G 11AC 2x2 MU-MIMO
• Wi-Fi EasyMesh

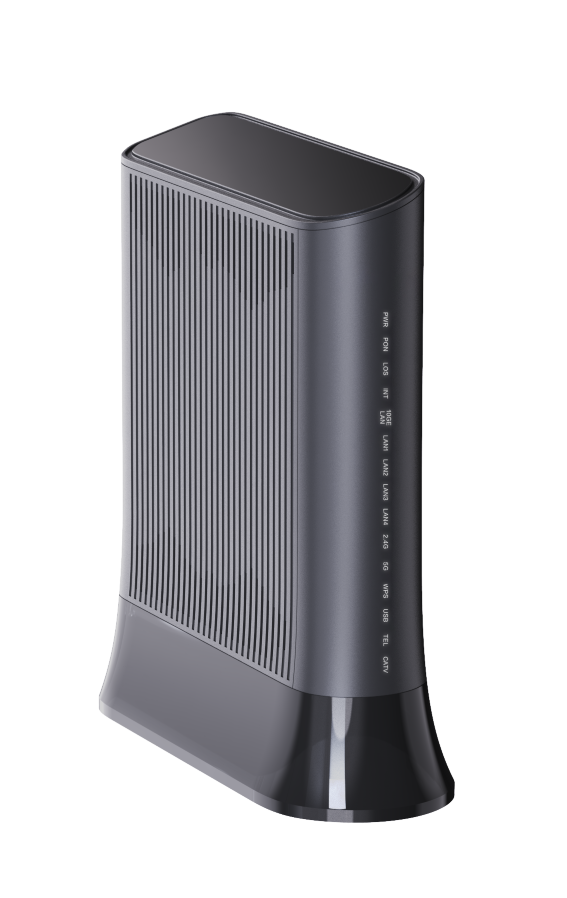

GN256V is a cost-effective GPON ONT for FTTH solution. It provides maximum 2.5Gbps for downstream and 1.25Gbps for upstream data rate over optical fibre. Integrated with four Gigabit Ethernet ports router, it provides a stable and reliable high speed wired connectivity. The device is equipped with dual band 2x2 Wi-Fi 4 (ieee802.11n) and 2x2 Wi-Fi 5 (ieee 802.11ac), it delivers a very high speed wireless connectivity, total wireless link speed could reach 1200Mbps. The device could also provide two RJ11 telephone ports for voice/fax services.

GN256V supports Wi-Fi alliance standard EasyMesh, which allows the ONT gateway to create a whole home Wi-Fi network with multiple mesh Wi-Fi APs such as SKYWORTH Mesh AP RN420. Mesh AP could use either wireless or wired ethernet cable to connect with the GN256V which controlls the whole mesh network for seamless roaming, band steering etc.
SPECIFICATIONSPECIFICATION
PON features
·    Standards:    ITU.T G.984.x, G.988
·    Optical Module:     Class B+, BOB
·    Data rate:    2.488Gbps / 1.244Gbps
·    Wavelength:    1310nm/1490nm
·    Max Distance:    20KM
·    TX Output:    0.5～5dBm
·    RX Input:    < -27dBm

Wireless
·    Standards:     IEEE 802.11 a/b/g/n/ac
·    Wi-Fi EasyMesh
·    Frequency:    2.4GHz & 5GHz
·    Data Rate:    2.4GHz - 300Mbps (40MHz)     5GHz  - 867Mbps (80MHz)
·    Security:    64/128bits WEP, WPA/WPA2-PSK
·    Antenna:    2*External Omni-directional

Telephony
·    Protocol:    SIP, H.248, SDP, RTP, RFC2833
·    Features:    CLASS, VAD, CNG, G.168 EC
·    Codec:    G.722, G.711a/u, G.729
·    Fax:    T.38, T.30, G.711
·    Ringing:  55 Vrms, 5 RENs

Interfaces
·    Optical interface:    1*GPON port, SC/APC
·    Ethernet:    4*GbE RJ45 ports
·    Telephone:    2*FXS RJ11 ports
·    USB:    1*USB2.0
·    Buttons:    Power On/Off, Reset, WPS
·    LEDs:    Power, PON, LOS, Internet, LAN1~4,  2.4G, 5G, WPS, TEL1~2, USB
